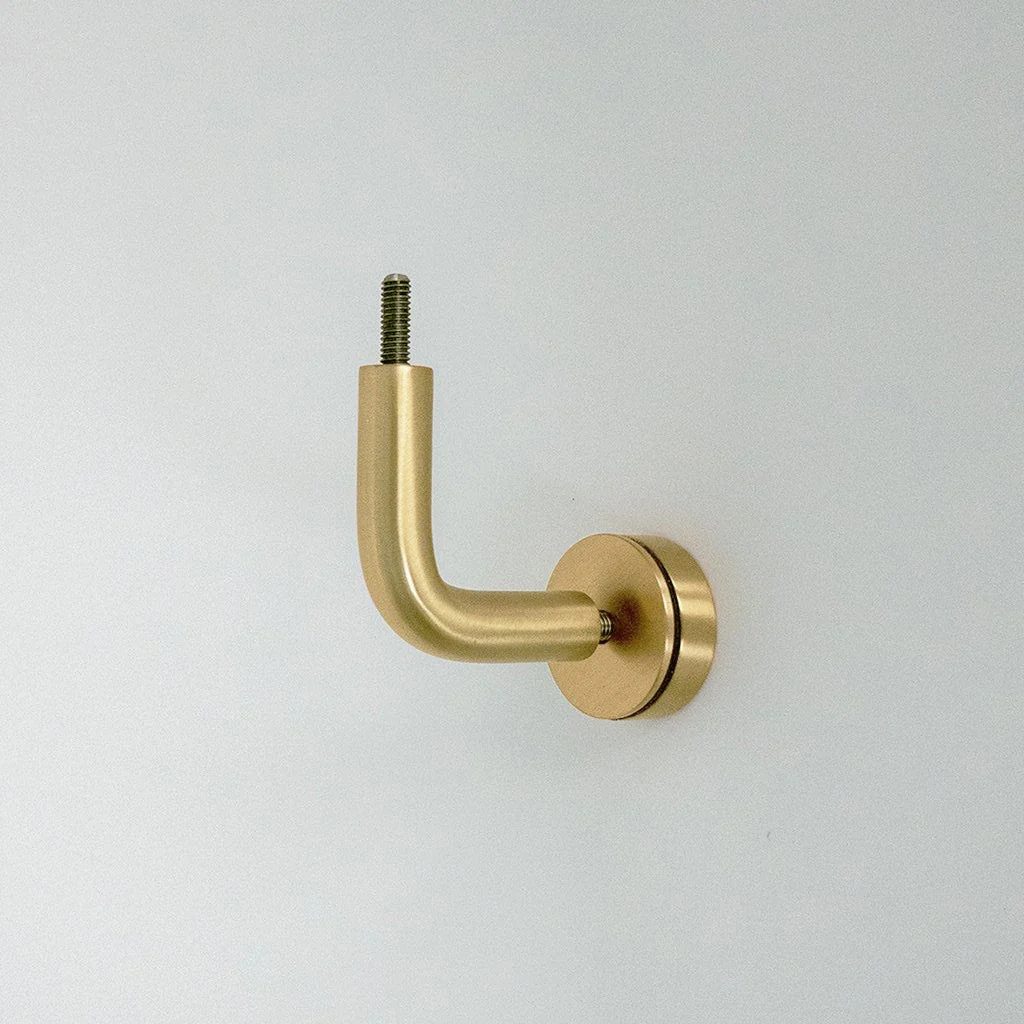

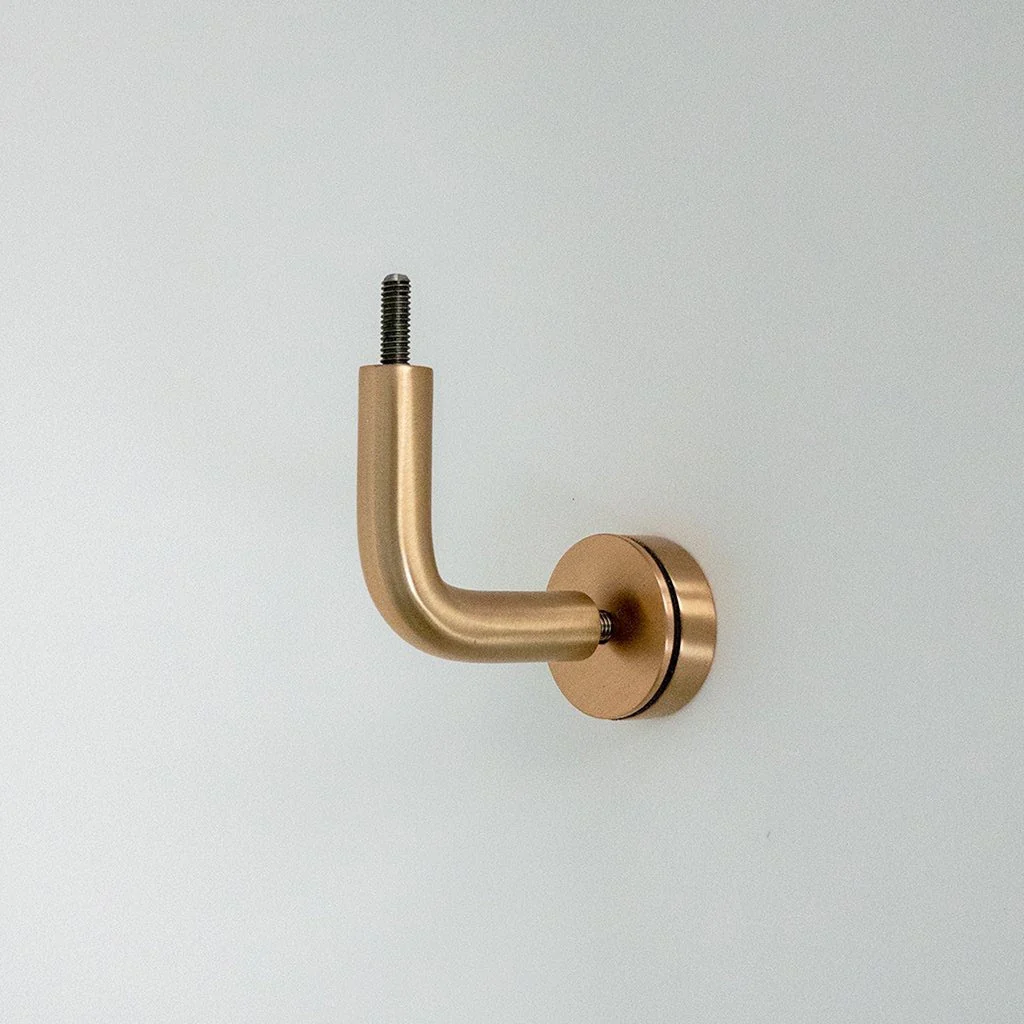

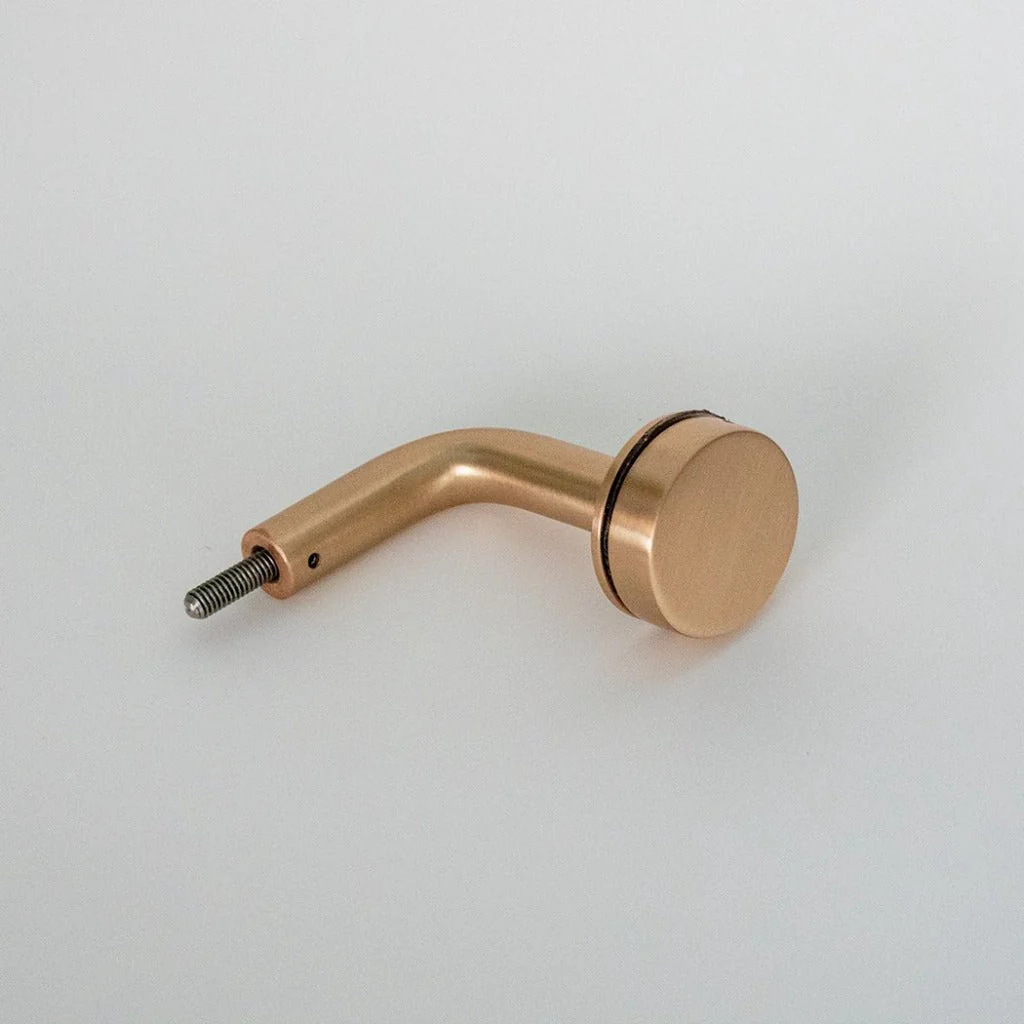

Orla Handrail Bracket Wall Mount

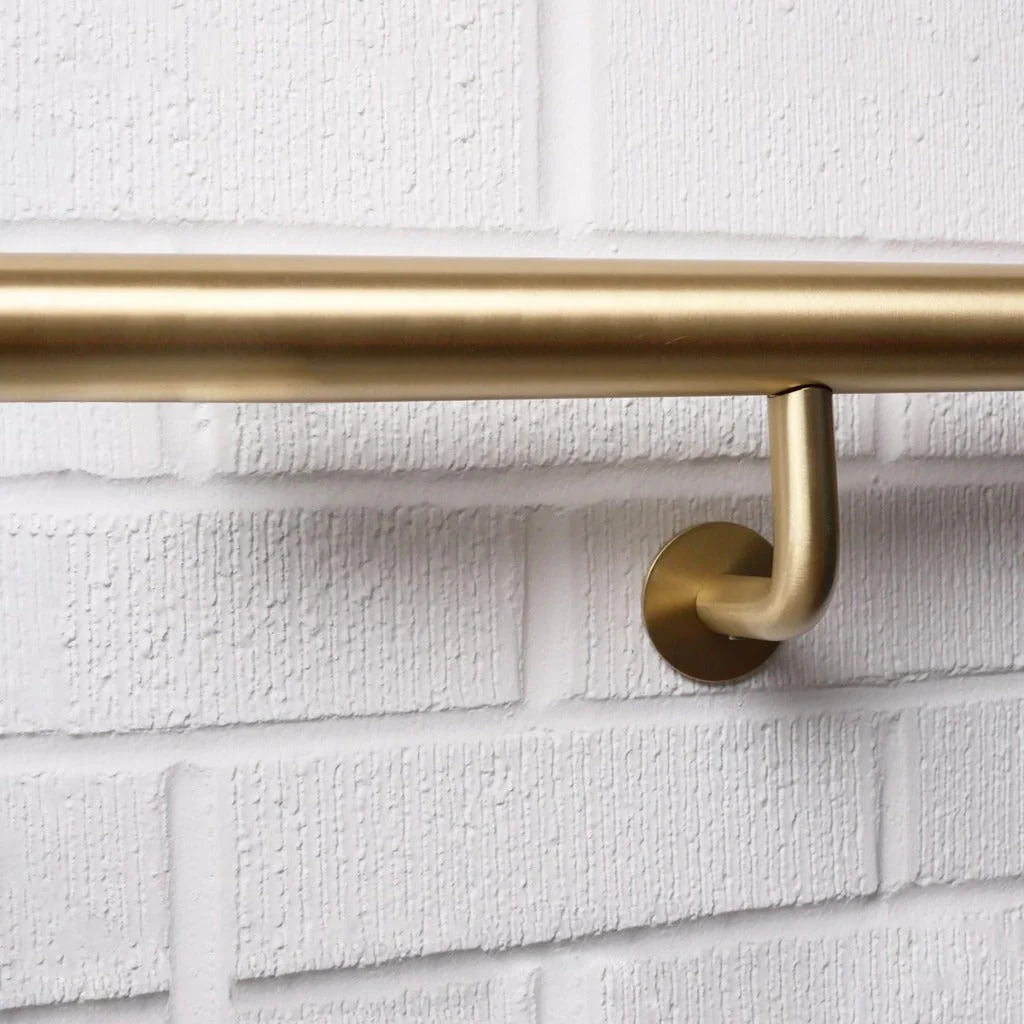

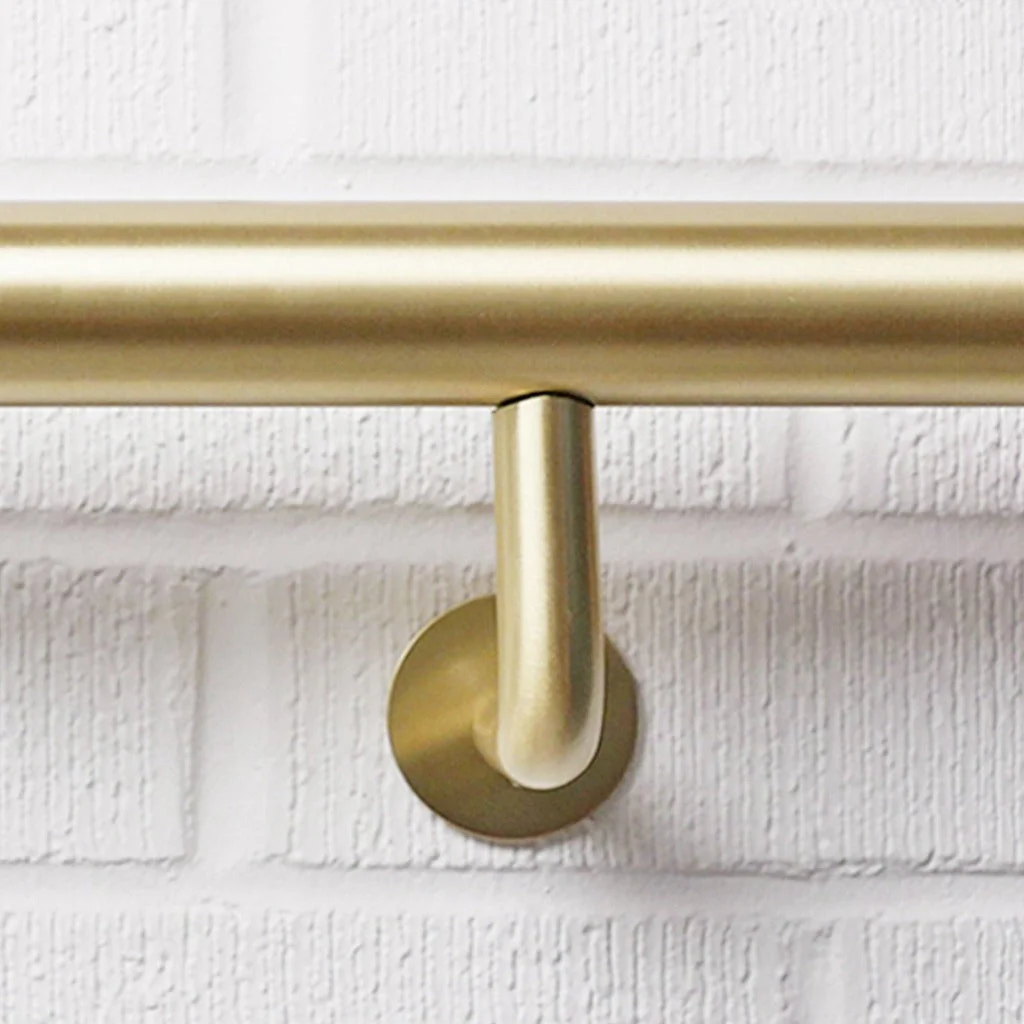

The Orla Handrail Bracket by CBH is a wall-mounted handrail bracket in brass or stainless steel with a sleek, minimalist profile. Designed to securely anchor handrails for both residential and commercial applications. Concealed mounting rose included.

Made in Canada.

Specifications

• Dimensions: H 76 mm (3") x D 76 mm (3") x Ø 19 mm (0.75")
• Standoff: 2-3/4" from wall to center of handrail (custom depths available on request)
• Mounting hardware included

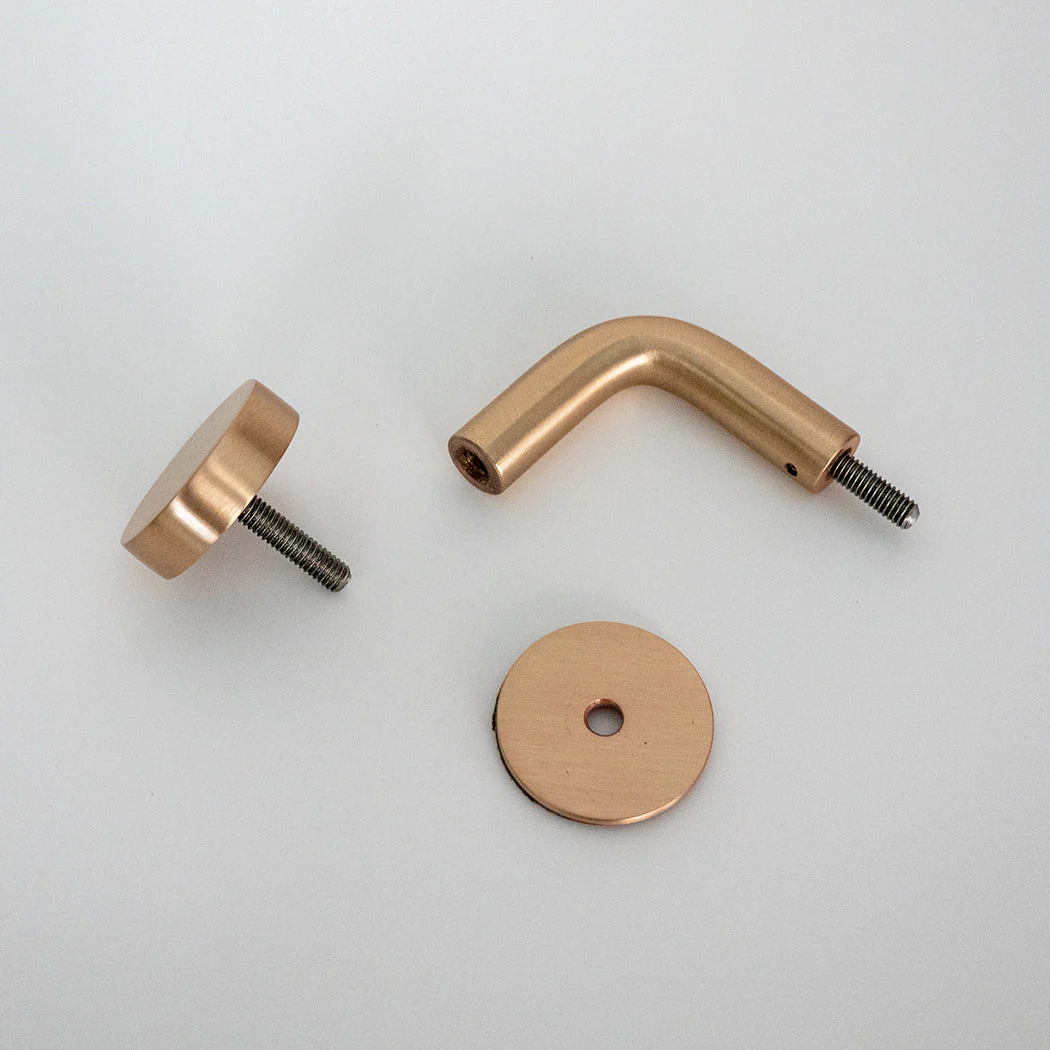

• Mounting rose included — recommended to protect the wall surface
• Handrail profile machined to order (see options): concave seat for round rails, flat seat for square or rectangular rails
• Handrail not included


Wood Installation

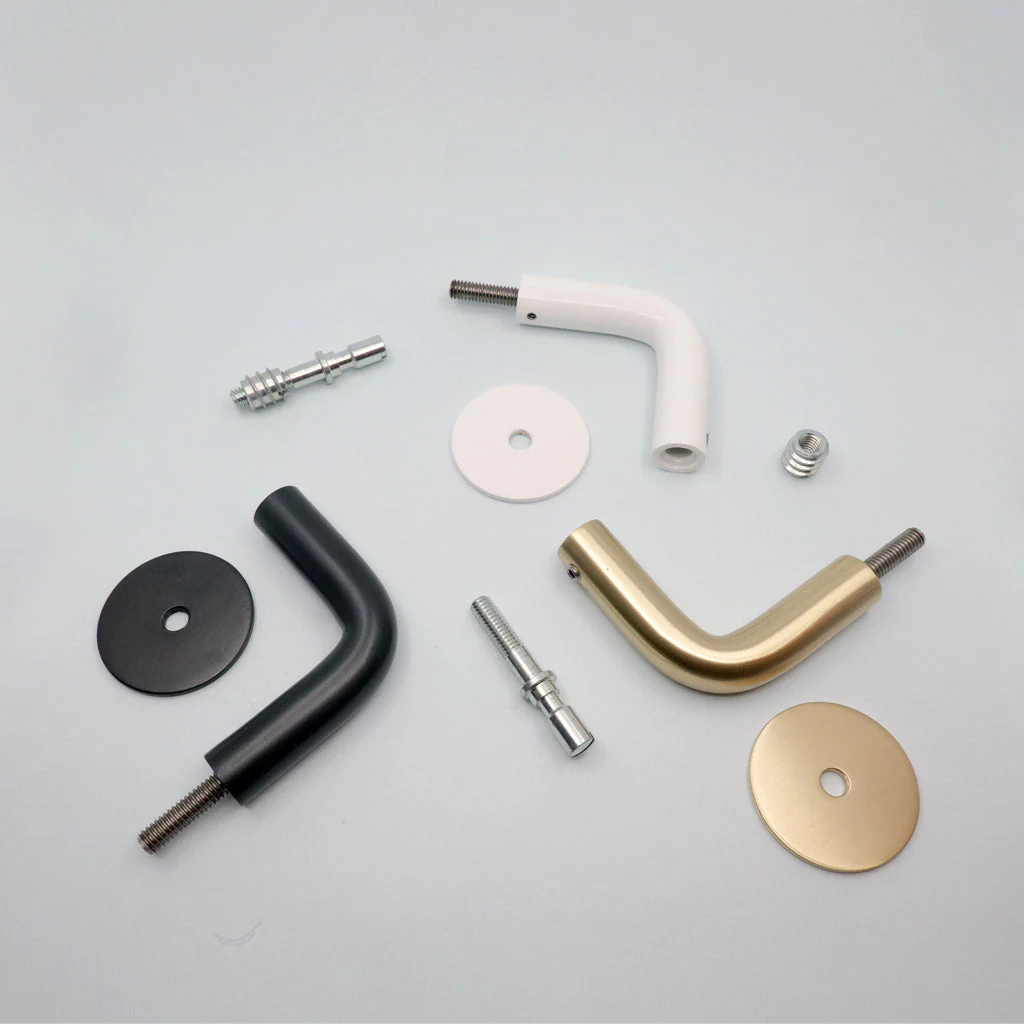

Fasten threaded stud into wood, thread rod into stud, slide bracket and secure with set screw.

Handrail Profile Options

The top of the bracket is machined to match the underside of your handrail. Select the option that corresponds to the rail you are installing:

• Round Ø 1-1/4" / 1-1/2" / 1-3/4" / 2" / 2-1/2" — concave seat matching the diameter of a round handrail
• Square or Rectangular Rail — flat seat for any square or rectangular profile

Materials

Available Finishes

• Satin Stainless Steel
• Polished Stainless Steel
• Satin Chrome
• Polished Chrome
• Satin Aluminum
• Satin Nickel
• Polished Nickel
• Lacquered Satin Brass
• Unlacquered Satin Brass
• Lacquered Polished Brass
• Unlacquered Polished Brass
• Satin Bronze
• Polished Bronze
• Oxidized Bronze
• Antique Brass
• Antique Bronze
• Antique Nickel
• Antique Copper
• Gloss White
• Matte Black

Material Notes

• Antique and oxidized finishes are hand-applied, resulting in unique, organic surface variations.
• Lacquered finishes maintain a consistent appearance over time. Unlacquered finishes will naturally age and develop a patina.
• Most finishes are lacquered by default. Satin Nickel, Satin Chrome, and Satin Stainless Steel are unlacquered. Oxidized Bronze is lacquered unless requested otherwise.
• See the Care & Maintenance Guide.

Product Downloads

• Orla Product Sheet & Installation Instructions (PDF)
